An Angle of Attack (AOA) indicator is an important flight instrument that helps pilots monitor the wing's aerodynamic performance. Unlike airspeed, which can vary depending on flight conditions, an AOA indicator provides real-time information about how close the wing is to reaching its critical angle of attack, making it a valuable tool for improving flight safety and stall awareness.
The purpose of an AOA indicator is to give the pilot better situational awareness of the aerodynamic health of the airfoil. This is also referred to as stall margin awareness. More simply explained, it is the margin that exists between the current AOA at which the airfoil is operating and the AOA at which the airfoil will stall (critical AOA).
Speed by itself is not a reliable parameter for avoiding a stall. An airplane can stall at any speed. Angle of attack is a better parameter to use because, for a given configuration, the airplane always stalls at the same AOA, referred to as the critical AOA. This critical AOA does not change with:
- Weight
- Bank angle
- Temperature
- Density altitude
- Center of gravity
An AOA indicator can have several benefits when installed in general aviation aircraft, not the least of which is increased situational awareness. Without an AOA indicator, the AOA is essentially "invisible" to pilots. These devices measure several parameters simultaneously and determine the current AOA, providing a visual indication of the aircraft's current angle of attack and its proximity to the critical AOA. Figure 1 illustrates a typical AOA indicator and the information it provides to the pilot.
 |

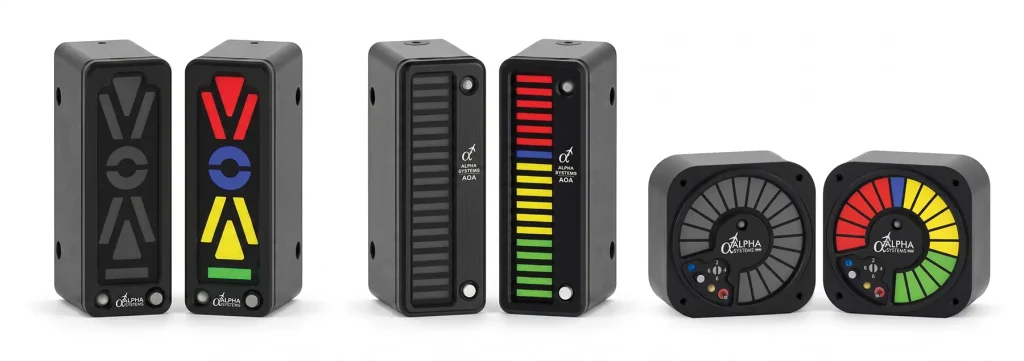

| Figure 1. Angle of attack indicators |
Most AOA indicators use pressure sensors, vane sensors, or other sensing methods to calculate the wing's angle of attack. The system continuously compares the current AOA with the critical AOA and displays the available stall margin, enabling pilots to recognize potentially hazardous flight conditions before a stall occurs.
These devices also provide a visual representation of the airplane's energy management state. The energy state of an airplane is the balance between airspeed, altitude, drag, and thrust, and represents how efficiently the airfoil is operating. By helping pilots manage energy more effectively during takeoff, climb, maneuvering, approach, and landing, an AOA indicator contributes to safer and more efficient flight operations.
